Lone Star Groundwater Conservation District

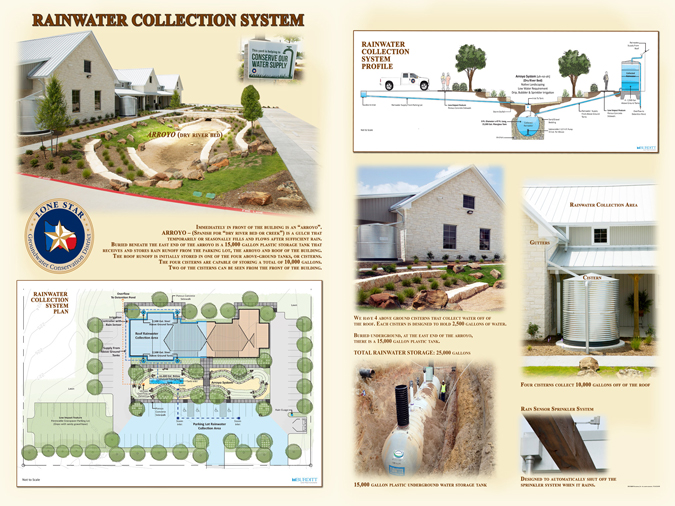

  • Plan of the rainwater harvesting system at the Lone Star Groundwater Conservation District.

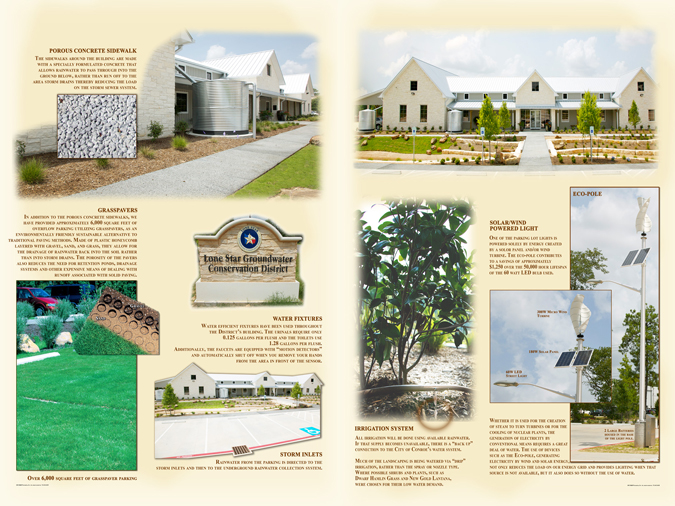

  • Schematic of water and energy conservation efforts at the site.

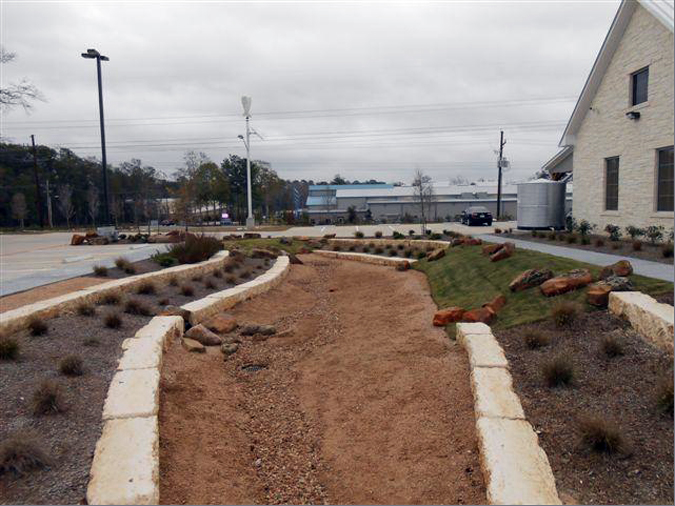

  • Arroyo at the front of the district building. A 15,000-gallon tank is buried under the arroyo.

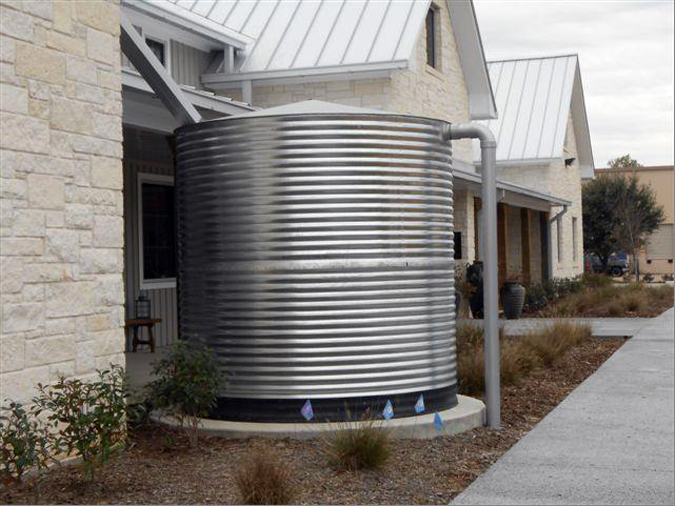

  • One of the four 2,500-gallon cisterns at the site.

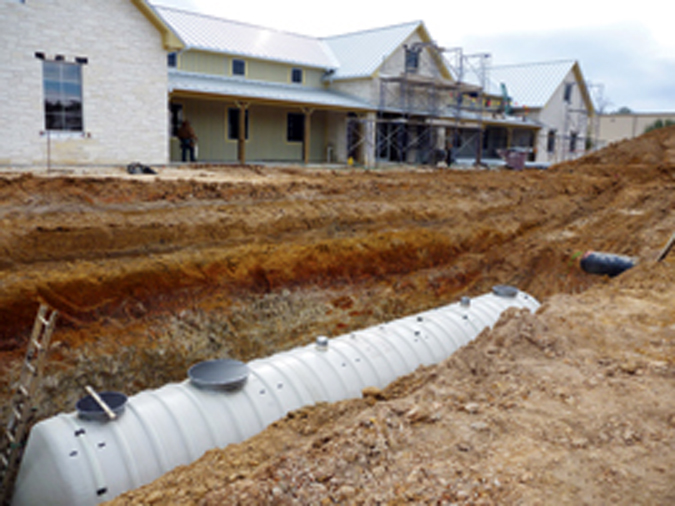

  • View of the buried 15,000-gallon tank during installation.

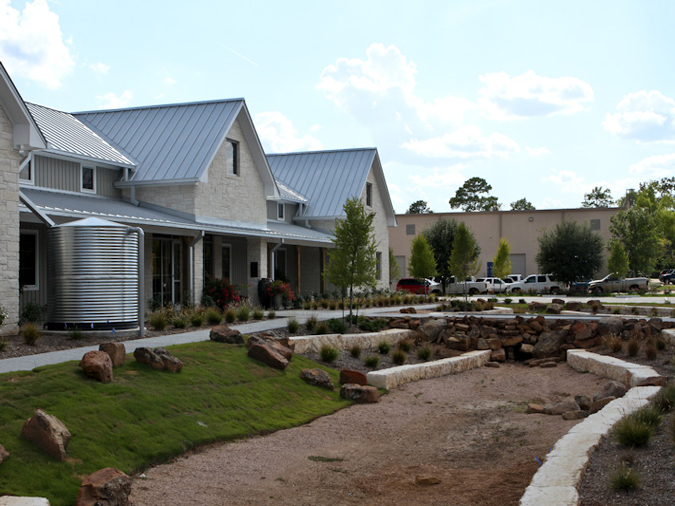

  • View of the building with the tanks in the background and the arroyo in the foreground.

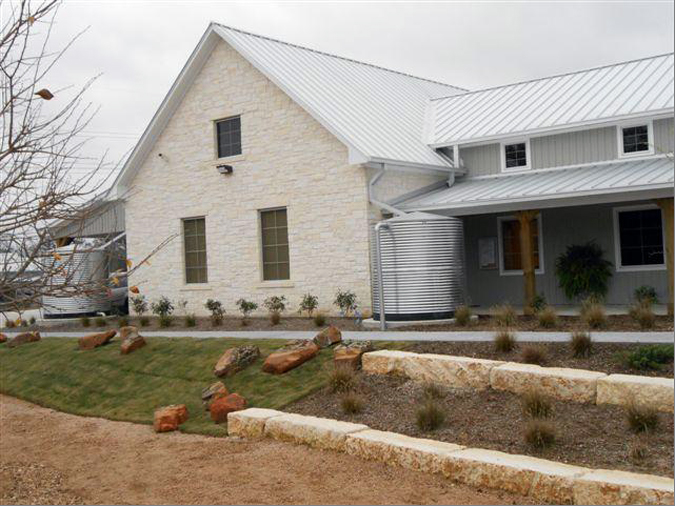

  • Another view of the building with a tank and the arroyo.
  • Award ceremony at the TWDB, February 28, 2013.

Overview

  • Category: Government
  • System Location:655 Conroe Park North Drive, Conroe, Texas 77303
  • Capacity: 25,000 gallons
  • Water Use: Non-potable (irrigation)

Background and System:

The mission of the Lone Star Groundwater Conservation District, Conroe, is to help Montgomery County progress to a sustainable, balanced portfolio of water resources. During construction of the new 4.9-acre headquarters, the district was presented an opportunity to show that growth in the county could be achieved without sacrificing quality because of water concerns. The district did so by implementing water conservation measures at the facility including installing a rainwater harvesting system.

At the heart of the system is a 15,000-gallon underground storage tank that collects water from the parking lot via a gravel-filled arroyo. Overflow is directed to an onsite retention pond. Four 2,500-gallon above-ground tanks also collect water from the 10,000-square-foot metal roof on the building which is piped to the underground storage tank. The rainwater is used to irrigate trees, grasses, and shrubs at the site.
